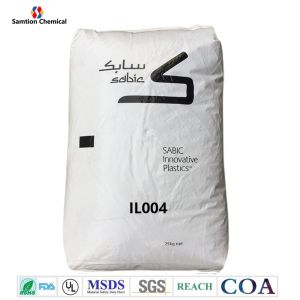

S-Plastics Lubricomp IL004 resin is
"Also known as: IL-4040
Product Reorder Name: IL004"
LNP* Lubricomp* IL004 is a compound based on Nylon 6/12 resin containing PTFE. Added features of this material include: Internally Lubricated.
| TYPICAL PROPERTIES (1) | | | |
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 47 | MPa | ASTM D 638 |
| Tensile Stress, break | 47 | MPa | ASTM D 638 |
| Tensile Strain, yield | 13.6 | % | ASTM D 638 |
| Tensile Strain, break | 14.3 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2060 | MPa | ASTM D 638 |
| Flexural Modulus | 2060 | MPa | ASTM D 790 |
| Tensile Stress, yield | 49 | MPa | ISO 527 |
| Tensile Stress, break | 49 | MPa | ISO 527 |
| Tensile Strain, yield | 15.2 | % | ISO 527 |
| Tensile Strain, break | 15.6 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2190 | MPa | ISO 527 |
| Flexural Stress | 65 | MPa | ISO 178 |
| Flexural Modulus | 2000 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 571 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 37 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 3 | J | ASTM D 3763 |
| Multiaxial Impact | 0 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 39 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 157 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 61 | °C | ASTM D 648 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 155 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 64 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.18 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.1 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 1.7 - 1.9 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 1.7 - 1.9 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 1.8 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 1.8 | % | ISO 294 |
| Wear Factor Washer | 18 | 10^-10 in^5-min/ft-lb-hr | ASTM D 3702 Modified |
| Dynamic COF | 0.24 | - | ASTM D 3702 Modified |
| Static COF | 0.27 | - | ASTM D 3702 Modified |
| Density | 1.18 | g/cm³ | ISO 1183 |
| Source GMD, last updated:09/24/2008 | | |
Processing
| Parameter | | | |
| Injection Molding | Value | Unit | |
| Drying Temperature | 80 | °C | |
| Drying Time | 4 | hrs | |
| Maximum Moisture Content | 0.12 - 0.2 | % | |
| Melt Temperature | 270 - 275 | °C | |
| Front - Zone 3 Temperature | 270 - 280 | °C | |
| Middle - Zone 2 Temperature | 260 - 270 | °C | |
| Rear - Zone 1 Temperature | 255 - 265 | °C | |
| Mold Temperature | 65 - 95 | °C | |
| Back Pressure | 0.2 - 0.3 | MPa | |
| Screw Speed | 30 - 60 | rpm | |
| Source GMD, last updated:09/24/2008 | | |
